What append when user select some generated content (Like result of groovy code for example when you can't know what in the macros is selected) ? Does it annotate the entire macro, return an error... ? On Mon, Nov 17, 2008 at 10:44 AM, Thomas Mortagne <thomas.mortagne@xwiki.com> wrote:

Hi Lucien,

On Mon, Nov 17, 2008 at 10:22 AM, Lucien PEREIRA <lucien.pereira@xwiki.com> wrote:

...

Hi,

I'd like to propose this design <http://dev.xwiki.org/xwiki/bin/view/Design/AnnotationFeature> for annotation feature implementation.

Vote is about choosing between solution 1 and 2.

if we can have an (almost) perfect bijective function between HTML and XWiki code, I'm +1 for solution 2 because implementation will be more efficient , stable and clean. Otherwise solution 1 seems to be a good solution.

Yes, you should be able to find the exact wiki source of what you selected (you will have sometime to get a little more than the selection, like for some macros for example) in generated xhtml so +1 for 2 also. By the way I guess there is already some tools in the WYSIWYG for this.

...

WDYT?

Lucien

_______________________________________________ devs mailing list devs@xwiki.org http://lists.xwiki.org/mailman/listinfo/devs

-- Thomas Mortagne

-- Thomas Mortagne

Marius Dumitru Florea wrote:

Vincent Massol wrote:

...

Hi Lucien and all,

Several ideas:

1) If this were implemented at the xwiki syntax level we couldn't do it with a macro as this would break the semantic of the wiki but it could be done using semantic inline poroperties (http://code.google.com/p/wikimodel/wiki/AdvancedStructuralElements ). Note that we haven't implemented this yet in the rendering. Right now the closest would be using custom XHTML attributes. 2) If it were to be implemented at the level of the wiki syntax it would only work with XWiki syntax 2.0 since we don't have a XHTML to wiki syntax converter for the 1.0 syntax (there would be too many other problems too) 3) You must talk to Marius and reuse his Range and Selection API that he implemented for Firefox/IE for selecting portions of text

Take a look here http://tinyurl.com/58u4ws . If you have questions please ask.

Regards, Marius

Thank you Marius for offering help. Lucien

...

4) I agree that it would be easier implemented at the xwiki syntax as otherwise you would have a very hard time synchronizing document changes with text selections. In addition having it at the wiki syntax allows to enter annotations when editing the document using the wysiwyg editor or the wiki editor and it solves the way to persist the location information.

So, is 2) acceptable for your need Lucien?

If we agree that it's best to implement at the wiki syntax level then we'll need to wait for 1.8 since we'll need to introduce semantic properties in the rendering module.

This is an interesting use case ;)

Thanks -Vincent

On Nov 17, 2008, at 10:22 AM, Lucien PEREIRA wrote:

...

Hi,

I'd like to propose this design <http://dev.xwiki.org/xwiki/bin/view/Design/AnnotationFeature> for annotation feature implementation.

Vote is about choosing between solution 1 and 2.

if we can have an (almost) perfect bijective function between HTML and XWiki code, I'm +1 for solution 2 because implementation will be more efficient , stable and clean. Otherwise solution 1 seems to be a good solution.

WDYT?

Lucien

_______________________________________________ devs mailing list devs@xwiki.org http://lists.xwiki.org/mailman/listinfo/devs

_______________________________________________ devs mailing list devs@xwiki.org http://lists.xwiki.org/mailman/listinfo/devs

Ludovic Dubost wrote:

Hi,

The solution we are trying to find for annotation is one that would not necessarly require to store permanently the annotation in the document. We could decide to do this and it's true that it can remove us a few problems.

But one of the idea was to try to be non obtrusive and do not touch the annotated document when annotating. This would also allow to use the same annotation tool on non wiki content (static HTML or even any document transformable to HTML as long as it would not change).

Now even tough we decide or not to store the annotation fully / partially (only the marker, and keep the annotation itself outside) / not at all in the wiki syntax document, I think the same technologies could be used or not to do the annotation itself.

Example:

wiki syntax document with annotation in wiki macro (whatever it is) or wiki syntax document with annotation externally with positions in the document

-->

transformed to wiki syntax with annotation

-->

transformed to HTML with HMTL markers for the annotation which willl allow a JS interface to make great and fun UI to visualize the annotation

----

insert of new annoation in the same HTML as the one generated by the wiki syntax rendering of annotation

-->

transformation to wiki syntax with wiki macro for the new annoation

-->

save of the wiki syntax document + annoation or extraction of the annotation to calculate it's position

For repositionning the annotation on document changes, we would have nothing to do in case of the marker stored in the wiki syntax or we would have to work on DIFFs to reposition the annotation. This could be done by reintroducing the marker and see how they move after the merging. If there is a conflict then this means the impact on the annotation is significant (disappearance of content or significant change). With a DIFF at the character level I think conflict will automatically mean disappearance of content.

Now we could decide to not make the effort of trying to store annotations separately and to decide to have at least the markers in the wiki document. Now if we do this we need to be aware that this could make annotation create a lot of updates to document.

This is a simple decision to make:

1/ Annotation with markers in the wiki document - no need for repositioning but issue if annotation markers are removed by editing - slightly simpler to set an annotation since it is like and editing but this creates saving of document after conversion from HTML to wiki syntax (risk on document) - much easier to render annotation, harder to not render them - could create heavy document

- one would need the edit right on the document to be able to annotate.

1/ Annotation with markers - more work to position - more work to set the annotation but no risk on the document - slightly more work to render annotation - lighter document - annotation system can be more easily used on non wiki content

I'm more into external annotations. This way they could be tied to my profile, where I could specify if I want them public or not -- just an idea. Marius

Ludovic

Vincent Massol a écrit :

...

Hi Lucien and all,

Several ideas:

1) If this were implemented at the xwiki syntax level we couldn't do it with a macro as this would break the semantic of the wiki but it could be done using semantic inline poroperties (http://code.google.com/p/wikimodel/wiki/AdvancedStructuralElements ). Note that we haven't implemented this yet in the rendering. Right now the closest would be using custom XHTML attributes. 2) If it were to be implemented at the level of the wiki syntax it would only work with XWiki syntax 2.0 since we don't have a XHTML to wiki syntax converter for the 1.0 syntax (there would be too many other problems too) 3) You must talk to Marius and reuse his Range and Selection API that he implemented for Firefox/IE for selecting portions of text 4) I agree that it would be easier implemented at the xwiki syntax as otherwise you would have a very hard time synchronizing document changes with text selections. In addition having it at the wiki syntax allows to enter annotations when editing the document using the wysiwyg editor or the wiki editor and it solves the way to persist the location information.

So, is 2) acceptable for your need Lucien?

If we agree that it's best to implement at the wiki syntax level then we'll need to wait for 1.8 since we'll need to introduce semantic properties in the rendering module.

This is an interesting use case ;)

Thanks -Vincent

On Nov 17, 2008, at 10:22 AM, Lucien PEREIRA wrote:

...

Hi,

I'd like to propose this design <http://dev.xwiki.org/xwiki/bin/view/Design/AnnotationFeature> for annotation feature implementation.

Vote is about choosing between solution 1 and 2.

if we can have an (almost) perfect bijective function between HTML and XWiki code, I'm +1 for solution 2 because implementation will be more efficient , stable and clean. Otherwise solution 1 seems to be a good solution.

WDYT?

Lucien

_______________________________________________ devs mailing list devs@xwiki.org http://lists.xwiki.org/mailman/listinfo/devs

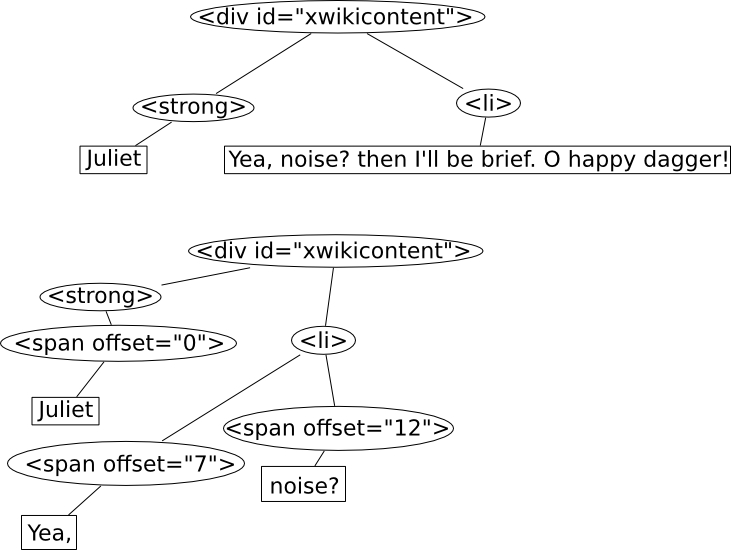

Hi, I present here an alternative method discussed today for retrieving annotation's position in XWiki source. When annotating, we got HTML dom tree, so we are enable to determine path from HTML tree root to the first and last node concerned by annotation. I'm considering that is possible for rendering engine to get for each word his source and position. So we are enable to request to server a second HTML dom tree that differs for default rendering by the fact he wrap each word in a span markup that contains position of word in xwiki source. By browsing this last tree using paths introduced above, we are placed on wrapping span and so are enable to retrieve offset of first and last word concerned by annotation. By this way we don't need a perfect bijection between html and xwiki syntax. By this way we also don't need to rerender document. What about generated words ? Considering that generated content is atomic, each words offset equals begin of generating code offset. 1) Do you think it's possible to make such rendering engine ? Displaying annotations Only for rendering process, we insert an annotation tag in XWiki source in order to retrieve it in HTML and display it nicely using GWT. A problem appears if we use simple tag as '|' because if annotations intersect themselves we could lost right couples. My idea was to group start and end tag using primary key associated with any annotation object. So we could use this syntax : {id id} 2) Is this syntax (eventually) compatible with rendering engine ? Feel free to indicate any other method. Lucien Lucien PEREIRA wrote: I'm sorry, I realized that design document was not clear on this point. In fact my idea was to do not modify initial xwiki source, I mean that insertion of the start/end selection tags is only a way to get the position/length of the selection after mapping from html to xwiki source. So after getting it, we model annotation concept by a class stored independently of the target document. This class stores offset, length, source concerned, eventually source context and eventually others. I think its better to store annotation externally and to not touch at all to xwiki source because annotation feature musn't impact neither on the default XWiki rendering process (annotation rendering should be done by an additional piece of code in client side) nor on the XWiki synthax. I agree with ludovic's general process description. Lucien Marius Dumitru Florea wrote: Ludovic Dubost wrote: Hi, The solution we are trying to find for annotation is one that would not necessarly require to store permanently the annotation in the document. We could decide to do this and it's true that it can remove us a few problems. But one of the idea was to try to be non obtrusive and do not touch the annotated document when annotating. This would also allow to use the same annotation tool on non wiki content (static HTML or even any document transformable to HTML as long as it would not change). Now even tough we decide or not to store the annotation fully / partially (only the marker, and keep the annotation itself outside) / not at all in the wiki syntax document, I think the same technologies could be used or not to do the annotation itself. Example: wiki syntax document with annotation in wiki macro (whatever it is) or wiki syntax document with annotation externally with positions in the document --> transformed to wiki syntax with annotation --> transformed to HTML with HMTL markers for the annotation which willl allow a JS interface to make great and fun UI to visualize the annotation ---- insert of new annoation in the same HTML as the one generated by the wiki syntax rendering of annotation --> transformation to wiki syntax with wiki macro for the new annoation --> save of the wiki syntax document + annoation or extraction of the annotation to calculate it's position For repositionning the annotation on document changes, we would have nothing to do in case of the marker stored in the wiki syntax or we would have to work on DIFFs to reposition the annotation. This could be done by reintroducing the marker and see how they move after the merging. If there is a conflict then this means the impact on the annotation is significant (disappearance of content or significant change). With a DIFF at the character level I think conflict will automatically mean disappearance of content. Now we could decide to not make the effort of trying to store annotations separately and to decide to have at least the markers in the wiki document. Now if we do this we need to be aware that this could make annotation create a lot of updates to document. This is a simple decision to make: 1/ Annotation with markers in the wiki document - no need for repositioning but issue if annotation markers are removed by editing - slightly simpler to set an annotation since it is like and editing but this creates saving of document after conversion from HTML to wiki syntax (risk on document) - much easier to render annotation, harder to not render them - could create heavy document - one would need the edit right on the document to be able to annotate. 1/ Annotation with markers - more work to position - more work to set the annotation but no risk on the document - slightly more work to render annotation - lighter document - annotation system can be more easily used on non wiki content I'm more into external annotations. This way they could be tied to my profile, where I could specify if I want them public or not -- just an idea. Marius Ludovic Vincent Massol a écrit : Hi Lucien and all, Several ideas: 1) If this were implemented at the xwiki syntax level we couldn't do it with a macro as this would break the semantic of the wiki but it could be done using semantic inline poroperties ([1]http://code.google.com/p/wi kimodel/wiki/AdvancedStructuralElements ). Note that we haven't implemented this yet in the rendering. Right now the closest would be using custom XHTML attributes. 2) If it were to be implemented at the level of the wiki syntax it would only work with XWiki syntax 2.0 since we don't have a XHTML to wiki syntax converter for the 1.0 syntax (there would be too many other problems too) 3) You must talk to Marius and reuse his Range and Selection API that he implemented for Firefox/IE for selecting portions of text 4) I agree that it would be easier implemented at the xwiki syntax as otherwise you would have a very hard time synchronizing document changes with text selections. In addition having it at the wiki syntax allows to enter annotations when editing the document using the wysiwyg editor or the wiki editor and it solves the way to persist the location information. So, is 2) acceptable for your need Lucien? If we agree that it's best to implement at the wiki syntax level then we'll need to wait for 1.8 since we'll need to introduce semantic properties in the rendering module. This is an interesting use case ;) Thanks -Vincent On Nov 17, 2008, at 10:22 AM, Lucien PEREIRA wrote: Hi, I'd like to propose this design [2]<http://dev.xwiki.org/xwiki/bin/view/Design/AnnotationFeature> for annotation feature implementation. Vote is about choosing between solution 1 and 2. if we can have an (almost) perfect bijective function between HTML and XWiki code, I'm +1 for solution 2 because implementation will be more efficient , stable and clean. Otherwise solution 1 seems to be a good solution. WDYT? Lucien _______________________________________________ devs mailing list [3]devs@xwiki.org [4]http://lists.xwiki.org/mailman/listinfo/devs _______________________________________________ devs mailing list [5]devs@xwiki.org [6]http://lists.xwiki.org/mailman/listinfo/devs _______________________________________________ devs mailing list [7]devs@xwiki.org [8]http://lists.xwiki.org/mailman/listinfo/devs References 1. http://code.google.com/p/wikimodel/wiki/AdvancedStructuralElements 2. http://dev.xwiki.org/xwiki/bin/view/Design/AnnotationFeature 3. mailto:devs@xwiki.org 4. http://lists.xwiki.org/mailman/listinfo/devs 5. mailto:devs@xwiki.org 6. http://lists.xwiki.org/mailman/listinfo/devs 7. mailto:devs@xwiki.org 8. http://lists.xwiki.org/mailman/listinfo/devs
